ORP Meters
S20 Bluetooth ORP Meter
High-performance bluetooth ORP meter is suitable for Android smartphone or tablet, 1 point calibration, setup menu contains 10 options, accuracy: 0.2 mV.
Features:
? High-performance bluetooth ORP meter is used to measure the mV and relative mV.
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Auto-read function senses and locks the measurement endpoint.
? Timed interval readings send measurement data to memory or a printer.
? Limit alarm automatically alerts when measurements exceed the specified range.
? Calibration due alarm reminds user to calibrate the tester regularly.
? Calibration log shows the date, time and offset.
? Password protection prevents unauthorized calibration and settings.
? Reset function automatically restores all settings to the factory defaults.
Model | S20 | |
ORP | ||
Range | -2000.0 to 2000.0 mV | |
Resolution | 0.1 / 1 mV, selectable | |
Accuracy | ±0.2 mV | |
Calibration | 1 point | |
Measurement Modes | Relative / Absolute mV | |
Other Specifications | ||
Stability Criteria | Fast / Standard / Slow | |
Measurement Modes | Continuous / Auto-read measurement endpoint | |
Timed Interval Readings | 10 / 30 / 60 / 300 seconds or off | |
Calibration Due Alarm | 1 to 99 days or off | |
Data Transfer | Memory / Printer | |
Password Protection | 6 digits | |
Connectivity | Bluetooth 4.0 or newer | |
Maximum Wireless Range | 10 m / 33 ft | |
Power Supply | 2 × 1.2V rechargeable batteries | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 100 g |

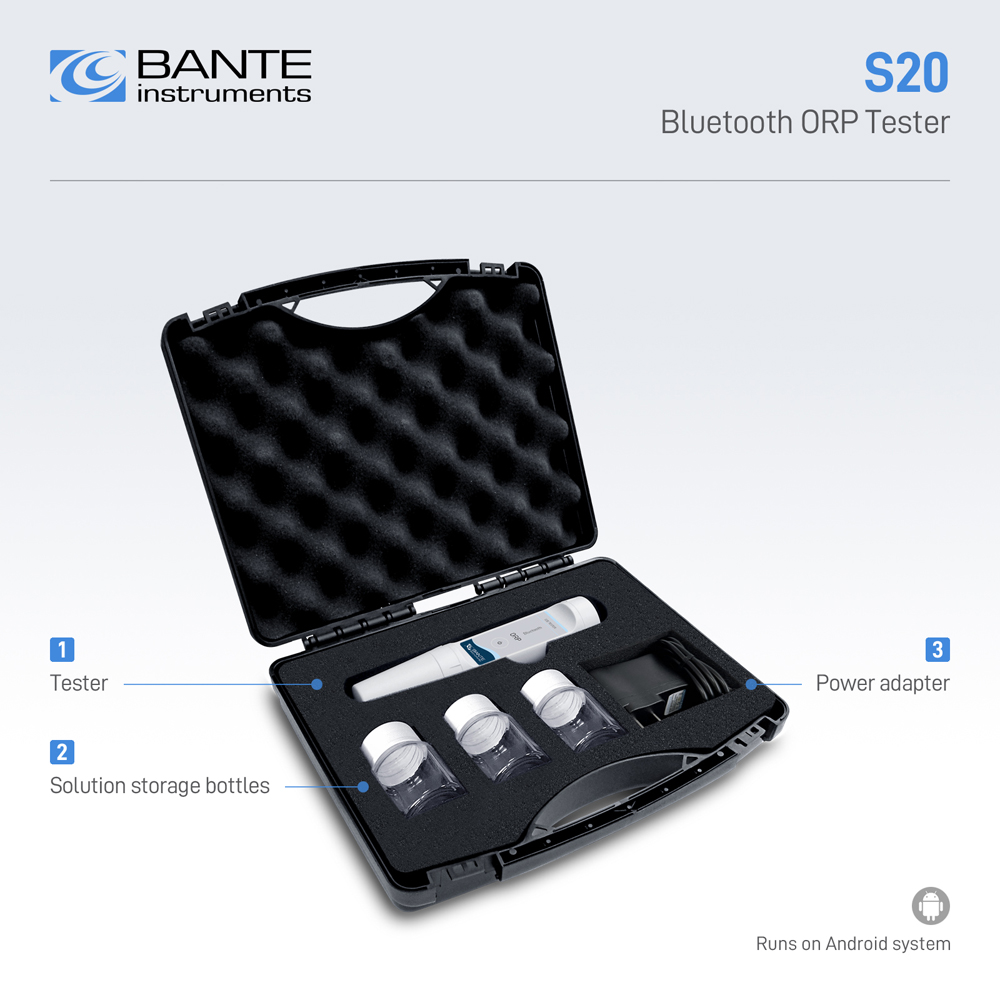

Ordering Code | Tester Includes |
S20 | Solution storage bottles |
| USB cable | |
| 5V DC power adapter | |
Carrying case |
| Items | Description |
| Bluetooth Printer | For printing the measurement data |
Ordering Code | Dimensions and Weights |
S20 | 28 × 8 × 25 cm, 1.5 kg |
